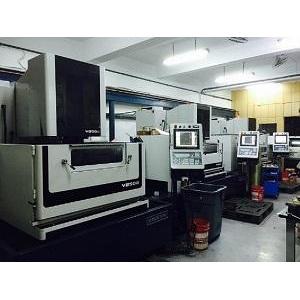

Presentation for equipment

Presentation for equipment (Electrical Discharge Machining)

The left chart for the line cutting factory environment, establishes a branch three factory districts. Because sufficient number of machines, plus complete process production management, so the price is very competiti...

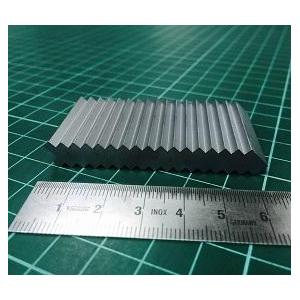

Special tooth profile processing ‏

Special tooth profile processing ‏ (Electrical Discharge Machining)

This parts complete completely by the CNC Electrical Discharge Machining processing. The tooth profile has the functionality (shape to have request specially), therefore essential use outline machine survey. Each too...

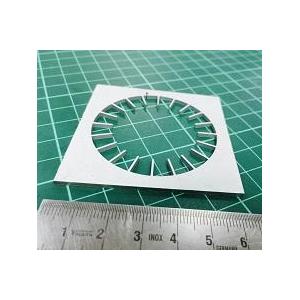

Tooth processing case

Tooth processing case (Electrical Discharge Machining)

This parts complete completely by electrical discharge machining. This parts use thin steel plate (0.3mm), therefore supports on both sides in the jig choice with the jig the way is important, after above two conditio...

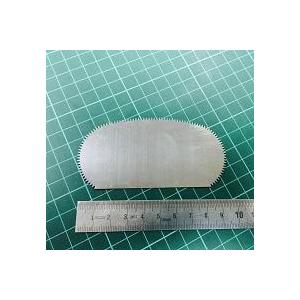

Agricultural machinery parts

Agricultural machinery parts (Electrical Discharge Machining)

This workpiece uses 0.2 diameter the copper wire processing to complete. This workpiece key point: Inside circle prominent acme, completes after the processing, cannot distort, moreover the verticality requests below ...

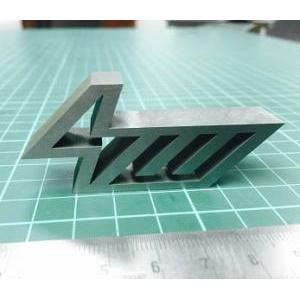

ShengWei Logo

ShengWei Logo (Electrical Discharge Machining)

This parts complete completely by electrical discharge machining. Uses the different processing technology, company's LOGO also may present by way of the design with electrical discharge machining Electrical discharg...

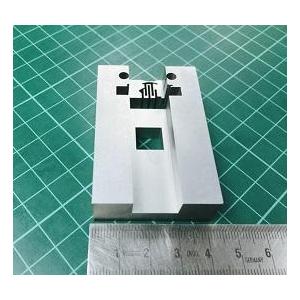

Fixture

Fixture (Electrical Discharge Machining)

Such as Left: four square hole because both require R angle 0.5mm or less, so I chose to 0.25mm diameter copper processing. Surface roughness requirements Ra0.4 below, the choice of process technology, rough cut proce...

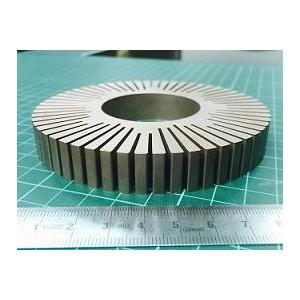

Electrode parts

Electrode parts (Electrical Discharge Machining)

This components choice line cutting processing, the main reason is the work piece trench width only then 1.8mm thickness reaches as high as 20mm, moreover the trench base R angle requests to want R0.25, the common mill...

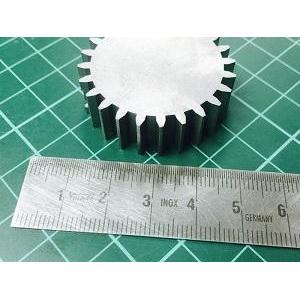

Gear

Gear (Electrical Discharge Machining)

This piece complete with Electrical Discharge Machining. This piece is the development of the sample, so use Electrical Discharge Machining. By Electrical Discharge Machining tooth profile, involute also can conform ...
